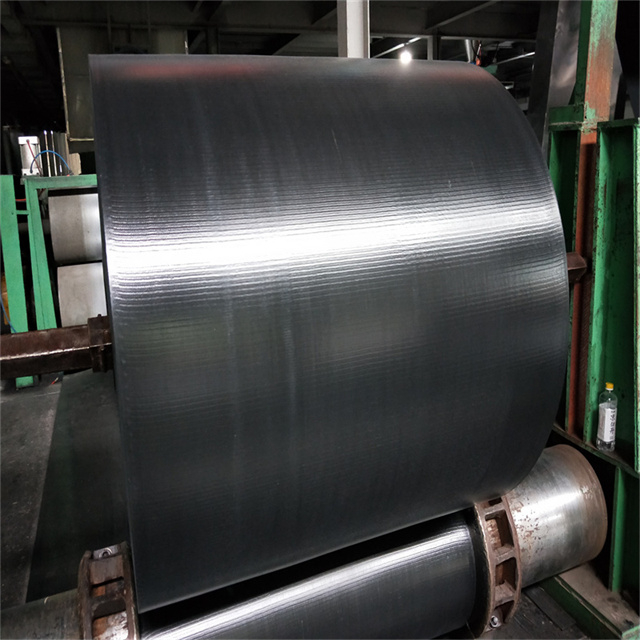

Rubber Belt PVC/Pvg Conveyor Belt Used for Material Handling Equipment

1.Standard : DIN22102(Z,W,Y,X) AS1332(N.M),RMA (Ⅰ,Ⅱ)
2.Application: PVC:utilized coal mine in dry conditions that slope angle less than 16°.
                      PVG:utilized coal mine in wet and low temperature working conditions.
3. Hot selling: (PVC680.PVC800.PVC1000)*300mtr/roll width 800mm.1000mm
                      (PVG800.PVG1000.PVG1250)*300mtr/roll width 1200mm,1500mm



  • Hanbelt

  • HB2144

Availability:
Quantity:


ClassWarp N/mmWeft N/mmCarcass (mm)Carcass weightCover recommended thickness(mm) PVCCover recommended thickness(mm) PVG
6806802656.5 8.5 1.0+1.01.5+1.5
8008003207.0 9.0 1.0+1.01.5+1.5
100010003507.5 10.0 1.0+1.02.0+2.0
125012503508.5 11.0 1.0+1.02.0+2.0
140014004509.0 11.5 1.0+1.02.0+2.0
160016004509.5 12.3 3.0+2.02.0+2.0
1800180045010.0 13.0 3.0+2.03.0+3.0
2000200045010.5 13.6 3.0+2.03.0+3.0
2500250045012.5 14.5 3.0+2.03.0+3.0
3100310045017.0 17.0 3.0+2.03.0+3.0


Non pressed PVC type
Construction: After dipping with PVC on the solid woven fabric, add PVC cover on the solid carcass to from the belt.
PVG type
Construction: Based on PVC carcass, with rubber component top and bottom cover, formed after belting pressed.
Character: Good fire resistant and antistatic properties, light weight, high strength, super anti-ripping and impact resistance.

PVC PVG Solid Woven Conveyor Belt
Used in coal mining and other working conditions that need fire resistance and antistatic properties.
