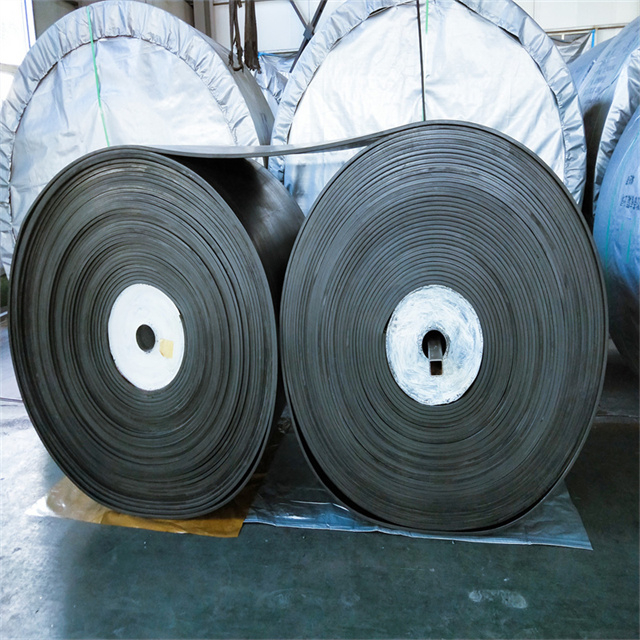

Hanbelt
HB2601
| Quantity: | |
|---|---|
Product details:
| Fabric specs | Ply thickness (mm/P) | N/mm | Cover thickness (mm) | |||||
| Strength series | ||||||||
| 2 ply | 3 ply | 4 ply | 5 ply | 6 ply | Top | Bottom | ||
| EP-80 | 0.90 | 160 | 240 | 320 | 400 | 480 | 2.0~8.0 | 1.0-5.0 |
| EP-100 | 1.00 | 200 | 300 | 400 | 500 | 600 | ||
| EP-125 | 1.00 | 250 | 375 | 500 | 625 | 750 | ||
| EP-150 | 1.00 | 300 | 450 | 600 | 750 | 900 | ||
| EP-160 | 1.10 | 320 | 480 | 640 | 800 | 960 | ||
| EP-200 | 1.20 | 400 | 600 | 800 | 1000 | 1200 | ||
| EP-250 | 1.20 | 500 | 750 | 1000 | 1250 | 1500 | ||
| EP-300 | 1.35 | 600 | 900 | 1200 | 1500 | 1800 | ||
| EP-350 | 1.50 | - | 1050 | 1400 | 1750 | 2100 | ||
| EP-400 | 1.80 | - | - | 1600 | 2000 | 2400 | ||
| EP-500 | 2.00 | - | - | 2000 | 2500 | 3000 | ||
Main Features & Applications:
1. A well-rounded solution for securing materials over the long haul. Minimizing dust pollution keep environment clean.
2. Easily conforms to existing environment by going ups and downs and making turns, occupies less land.
3. It can have larger lift angle. Materials can be conveyed at both upper (carry) and lower (return) branches.
4. Developed using FEA modeling to meet the demands of modern pipe conveyor systems.
5. Provides superb long-term transverse stiffness, excellent overlap seal, and reduced buckling and minimized seam rotation in curves.
Product details:
| Fabric specs | Ply thickness (mm/P) | N/mm | Cover thickness (mm) | |||||
| Strength series | ||||||||
| 2 ply | 3 ply | 4 ply | 5 ply | 6 ply | Top | Bottom | ||
| EP-80 | 0.90 | 160 | 240 | 320 | 400 | 480 | 2.0~8.0 | 1.0-5.0 |
| EP-100 | 1.00 | 200 | 300 | 400 | 500 | 600 | ||
| EP-125 | 1.00 | 250 | 375 | 500 | 625 | 750 | ||
| EP-150 | 1.00 | 300 | 450 | 600 | 750 | 900 | ||
| EP-160 | 1.10 | 320 | 480 | 640 | 800 | 960 | ||
| EP-200 | 1.20 | 400 | 600 | 800 | 1000 | 1200 | ||
| EP-250 | 1.20 | 500 | 750 | 1000 | 1250 | 1500 | ||
| EP-300 | 1.35 | 600 | 900 | 1200 | 1500 | 1800 | ||
| EP-350 | 1.50 | - | 1050 | 1400 | 1750 | 2100 | ||
| EP-400 | 1.80 | - | - | 1600 | 2000 | 2400 | ||
| EP-500 | 2.00 | - | - | 2000 | 2500 | 3000 | ||
Main Features & Applications:
1. A well-rounded solution for securing materials over the long haul. Minimizing dust pollution keep environment clean.
2. Easily conforms to existing environment by going ups and downs and making turns, occupies less land.
3. It can have larger lift angle. Materials can be conveyed at both upper (carry) and lower (return) branches.
4. Developed using FEA modeling to meet the demands of modern pipe conveyor systems.
5. Provides superb long-term transverse stiffness, excellent overlap seal, and reduced buckling and minimized seam rotation in curves.
