Conveyor Belting Supply Solutions
According to your different needs, producecustomized products
 |

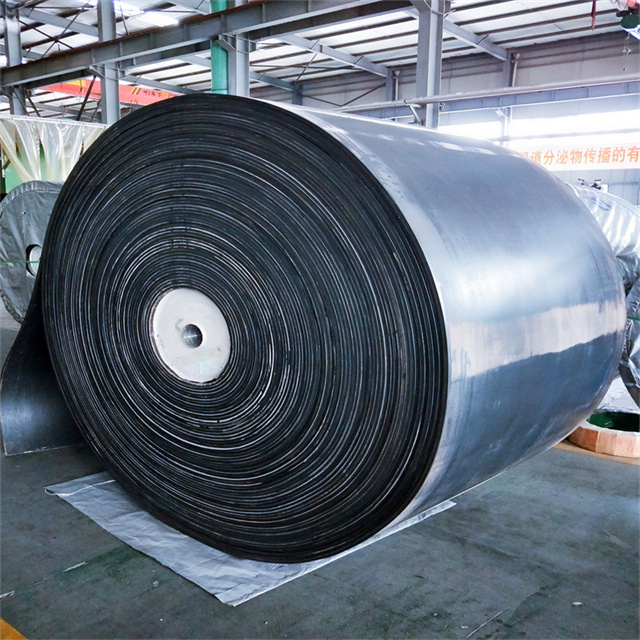

EP320/2P3.2+1.6
Hanbelt
HB2129
| Quantity: | |
|---|---|
Product details:
| Fabric specs | Ply thickness (mm/P) | N/mm | Cover thickness (mm) | |||||
| Strength series | ||||||||
| 2 ply | 3 ply | 4 ply | 5 ply | 6 ply | Top | Bottom | ||
| EP-80 | 0.90 | 160 | 240 | 320 | 400 | 480 | 2.0~8.0 | 1.0-5.0 |
| EP-100 | 1.00 | 200 | 300 | 400 | 500 | 600 | ||
| EP-125 | 1.00 | 250 | 375 | 500 | 625 | 750 | ||
| EP-150 | 1.00 | 300 | 450 | 600 | 750 | 900 | ||
| EP-160 | 1.10 | 320 | 480 | 640 | 800 | 960 | ||
| EP-200 | 1.20 | 400 | 600 | 800 | 1000 | 1200 | ||
| EP-250 | 1.20 | 500 | 750 | 1000 | 1250 | 1500 | ||
| EP-300 | 1.35 | 600 | 900 | 1200 | 1500 | 1800 | ||
| EP-350 | 1.50 | - | 1050 | 1400 | 1750 | 2100 | ||
| EP-400 | 1.80 | - | - | 1600 | 2000 | 2400 | ||
| EP-500 | 2.00 | - | - | 2000 | 2500 | 3000 | ||
1. During transportation and storage, the conveyor belt should be kept clean, avoid direct sunlight or rain and snow, and avoid contact with acid, alkali, oil, organic solvent and other substances, and be one meter away from the heating device.
2. When the conveyor belt is stored, the warehouse temperature should be kept between 18-40 ºC and the relative humidity should be kept between 50-80%.
Product details:
| Fabric specs | Ply thickness (mm/P) | N/mm | Cover thickness (mm) | |||||
| Strength series | ||||||||
| 2 ply | 3 ply | 4 ply | 5 ply | 6 ply | Top | Bottom | ||
| EP-80 | 0.90 | 160 | 240 | 320 | 400 | 480 | 2.0~8.0 | 1.0-5.0 |
| EP-100 | 1.00 | 200 | 300 | 400 | 500 | 600 | ||
| EP-125 | 1.00 | 250 | 375 | 500 | 625 | 750 | ||
| EP-150 | 1.00 | 300 | 450 | 600 | 750 | 900 | ||
| EP-160 | 1.10 | 320 | 480 | 640 | 800 | 960 | ||
| EP-200 | 1.20 | 400 | 600 | 800 | 1000 | 1200 | ||
| EP-250 | 1.20 | 500 | 750 | 1000 | 1250 | 1500 | ||
| EP-300 | 1.35 | 600 | 900 | 1200 | 1500 | 1800 | ||
| EP-350 | 1.50 | - | 1050 | 1400 | 1750 | 2100 | ||
| EP-400 | 1.80 | - | - | 1600 | 2000 | 2400 | ||
| EP-500 | 2.00 | - | - | 2000 | 2500 | 3000 | ||
1. During transportation and storage, the conveyor belt should be kept clean, avoid direct sunlight or rain and snow, and avoid contact with acid, alkali, oil, organic solvent and other substances, and be one meter away from the heating device.
2. When the conveyor belt is stored, the warehouse temperature should be kept between 18-40 ºC and the relative humidity should be kept between 50-80%.
